DL-pro Temperature Sensor DA32-10105H review

Are you trying to decide if the DL-pro Temperature Sensor for Samsung DA32-10105H Thermal Sensor Heat Probe is the right replacement part for your side-by-side or French door refrigerator?

Quick overview of the DL-pro Temperature Sensor for Samsung DA32-10105H Thermal Sensor Heat Probe for Air Duct Fridge Part for Side by Side Fridge Freezer Combination

You’ll find this DL-pro temperature sensor marketed as a direct-fit replacement for several fridge models, including Samsung DA32-10105H (DA3210105H) and a range of other brands. It’s a compact plastic probe designed to sit in the air duct of the refrigerator and feed temperature information to the control board so your fridge can manage compressor cycles and defrost routines. If your fridge is running warm, running constantly, or showing erratic temperature behavior, replacing a faulty sensor like this is one of the most common and inexpensive repairs you can perform.

What this part does and why it matters

The sensor monitors internal air temperature and informs the control board so it can regulate cooling and defrost cycles. If the sensor gives incorrect readings (open circuit or wrong resistance), your unit may not cool properly or may overwork the compressor, increasing wear and energy use. Replacing a malfunctioning sensor is often a quick fix that restores normal operation without replacing expensive components.

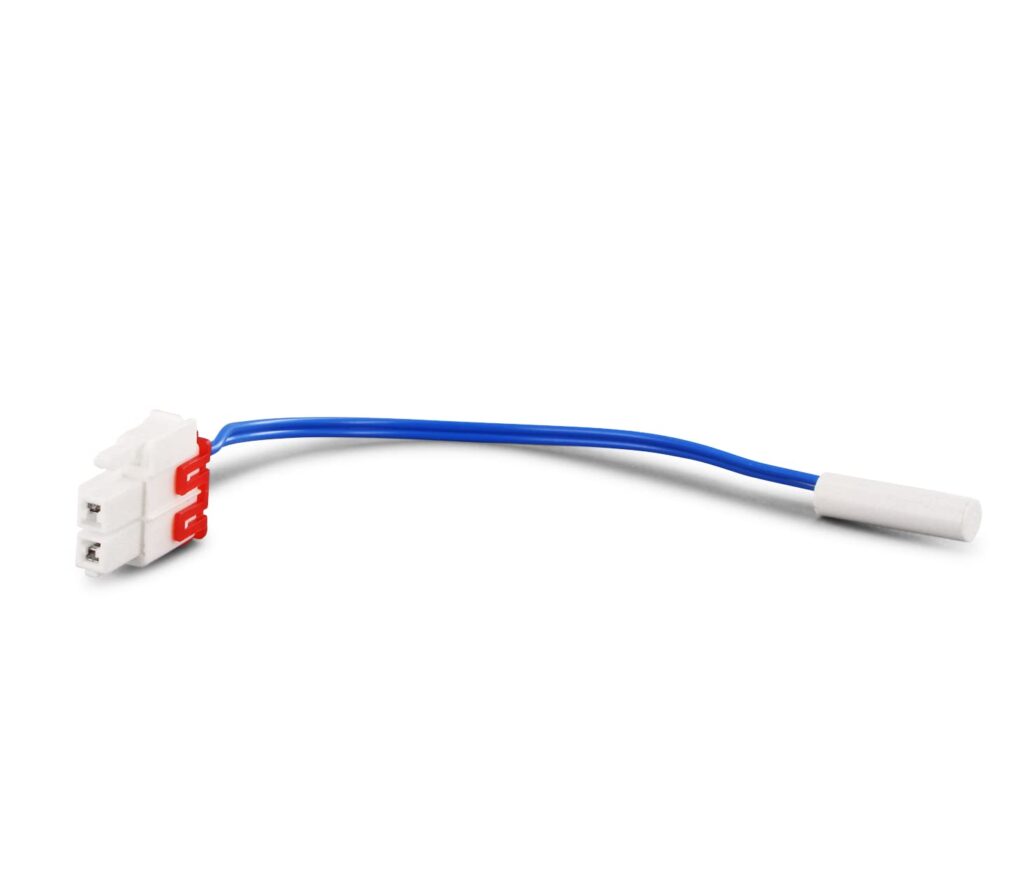

Product specifications and physical details

Below you’ll find the main physical details and specs provided by the manufacturer and seller. This helps you check fit and clearance before ordering.

Notes on the physical size and orientation

You’ll want to compare the plug dimensions and sensor probe length to your fridge’s mounting space. The plug housing measures 21 x 9 x 26 mm and the probe is small (7 x 25 mm), so it usually fits into air duct clips or mounting points. The total length of 160 mm should allow the probe to reach the intended air duct location in most side-by-side and French door designs, but measure the distance from the existing connector to the probe slot before ordering.

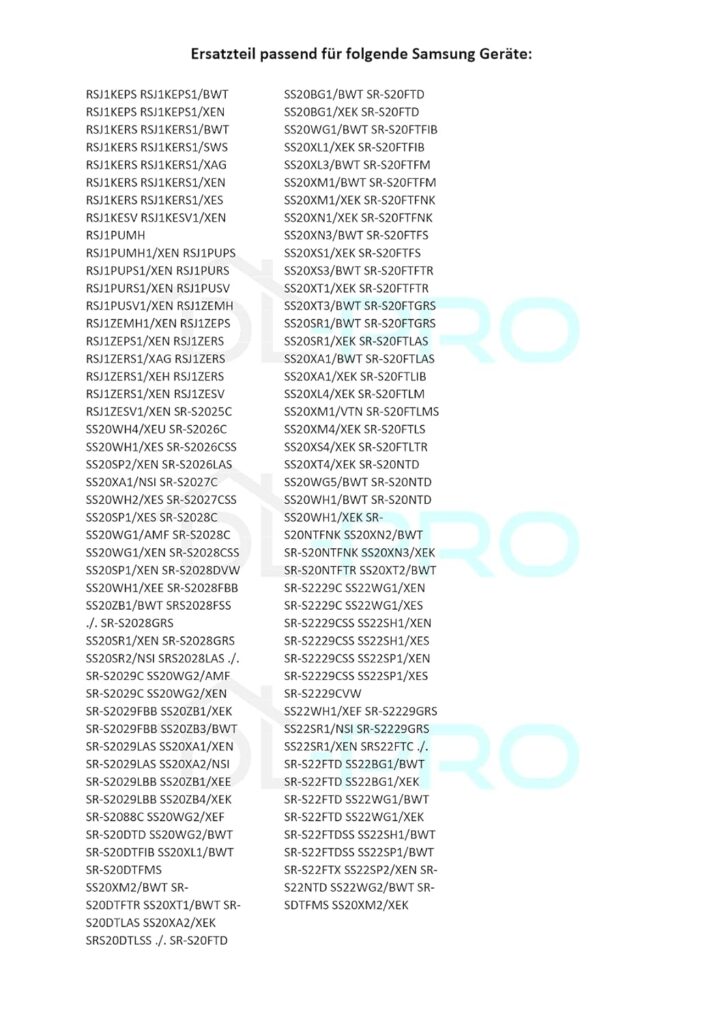

Compatibility and matching devices

This sensor lists compatibility with a number of brands and part numbers. You should always confirm compatibility by visually matching the plug and probe against your existing sensor and checking the part number on your old component.

Brands and part numbers commonly supported

You can expect it to match:

• Samsung: DA32-10105H, DA3210105H
• Candy / Hoover / Rosieres / Zerowatt: 49005166, 49005414
• Ikea: 481201226897
• Selected models from Bauknecht, Ignis, Philips, Whirlpool

If your exact model isn’t shown, compare the plug and probe visually with your existing part. If you’re unsure, contact the seller with pictures of your old sensor and the connector; the seller has indicated they will help confirm fit.

How to confirm fit before you buy

1. Remove the old sensor and note the connector shape and wiring.
2. Measure the length from the connector to the probe tip.
3. Compare physical plug dimensions (21 x 9 x 26 mm) and probe size (7 x 25 mm).
4. Check the total cable length—160 mm—against the path it needs to follow.
   When these match, the DL-pro sensor is likely to be physically compatible.

Installation: what you’ll need and step-by-step instructions

You’ll usually be able to replace this sensor yourself with basic tools and safety precautions. Below are tools, preparation steps, and a step-by-step guide.

Tools you’ll need

• Phillips and flat-head screwdrivers (depending on fridge trim)
• Needle-nose pliers (for clips)
• Multimeter (for testing resistance and continuity)
• Work gloves (to protect your hands)
• Small flash light or headlamp
• Towels or rags (to catch a bit of moisture or insulation debris)

Safety and preparation

Always unplug the refrigerator or switch off the circuit at the breaker before you work on electrical components. If you need to open the freezer or fridge compartment, remove food and keep the door open briefly to access the sensor. If your fridge has an auto-defrost cycle, be careful of residual ice and sharp evaporator fins.

Step-by-step installation (general)

1. Unplug or power off the fridge. Safety first.
2. Locate the sensor: usually inside the air duct between freezer and refrigerator sections, or clipped to an evaporator fan housing. Consult your fridge manual for the exact location.
3. Access the sensor by removing the duct cover or interior panel. Keep screws in a safe spot.
4. Observe how the old sensor sits and how the cable runs to the control board. Take a photo for reference.
5. Disconnect the connector: unplug it from the main harness by pressing the locking tab and gently pulling. Don’t force it—use a small flat-head screwdriver to release tabs if needed.
6. Remove the old sensor from its mounting clip. Use pliers if it’s snug.
7. Route the new sensor cable along the same path, avoiding contact with sharp edges and keeping it clear of fan blades.
8. Insert the new probe into the mounting location or clip it into place. Ensure a snug fit so the sensor reads air temperature, not a surface.
9. Reconnect the plug to the harness—make sure it clicks and seats firmly.
10. Reassemble panels and screws.
11. Power the fridge back on and observe operation for at least 24–48 hours to confirm normal cycling.

How to test the sensor before and after installation

You’ll want to confirm whether the old sensor is actually faulty before replacing it and ensure the new one is functioning once installed.

Testing with a multimeter

The sensor is typically a thermistor (an NTC or PTC type), which changes resistance with temperature. You can test it like this:

• Set your multimeter to measure resistance (ohms).
• At room temperature, measure resistance across the sensor’s two terminals. Record the value.
• If you have access to freezer-cold water or ice, you can carefully cool the sensor and measure again to see a significant and consistent change in resistance.
• If the resistance is open (infinite) or doesn’t change at different temperatures, the sensor is likely faulty.

Note: Exact resistance values vary by sensor type. The key is a stable, temperature-dependent change rather than a precise number. If you’re troubleshooting, compare the old sensor’s resistance and readings with the new one installed.

Verifying after installation

After installing the new sensor:

• Power the fridge and listen for normal compressor cycles.
• Monitor interior temperature over 24–48 hours.
• If you have a temperature logger or an accurate thermometer, check that temperatures sit within expected ranges for both the fridge and freezer compartments.
  If temperature control returns to normal and the compressor shows reasonable cycles, your new sensor is working.

Performance, build quality, and real-world expectations

You should expect decent build quality for a DL-pro aftermarket part. It’s plastic-bodied with a compact probe and standard-sized plug housing which matches many OEM connectors.

What you can expect in daily use

• Accurate enough for control board decisions: aftermarket sensors typically perform similarly to OEM parts in everyday temperature regulation.
• Stable physical mounting: the probe size and shape allow for secure clipping into air ducts or holders.
• Reasonable durability: as long as the cable isn’t pinched and the connector remains dry and secure, you can expect multiple years of service.

Limitations of aftermarket sensors

• Calibration: aftermarket sensors may not be factory-calibrated exactly like OEM units. However, modern control boards tolerate small variations.
• Fit variations: in some fridge models the plug orientation or cable length may require minor adjustment.
• OEM warranty: replacing with aftermarket parts may affect warranty considerations; check your refrigerator warranty before installing third-party parts.

Pros and cons

Here’s a straightforward list to help you weigh the DL-pro sensor.

Pros

• Cost-effective alternative to OEM sensors.
• Compact probe design fits many air duct mounting points.
• Compatible with multiple brands and part numbers, including Samsung DA32-10105H.
• Easy for DIY replacement with basic tools.
• DL-pro is positioned as a premium aftermarket brand for household spare parts.

Cons

• May not be factory calibrated to OEM specifications.

• Slight differences in connector or cable routing could require adjustment in some models.

• Aftermarket parts can vary batch-to-batch; quality control may not be identical to OEM.

Troubleshooting common fridge problems linked to temperature sensors

If your refrigerator is showing issues, the sensor might be the culprit. Here’s how to narrow it down and what to do.

Symptoms that point to a faulty sensor

• Fridge or freezer too warm or too cold despite correctly set thermostat.
• Compressor running constantly or cycling abnormally.
• Frequent frost buildup in the freezer or excessive defrost cycles.
• Error codes on the digital display referencing temperature sensors (model-specific codes vary).
• Inconsistent temperatures between different parts of the fridge.

How to confirm the sensor is the issue

1. Check for obvious wiring damage or loose connectors. Visual inspection often catches the problem.
2. Measure the sensor’s resistance with a multimeter and check for reasonable, temperature-dependent change.
3. Swap the sensor with a working one (if available) to see if symptoms resolve.
4. If you’re getting error codes, consult your model’s service manual to confirm which codes relate to the temperature sensor.
   If these tests show a faulty sensor, replacing it with the DL-pro part should restore normal behavior.

If replacement doesn’t fix the problem

• Inspect evaporator fan, defrost heater, and evaporator coils. These components also affect cooling and may mimic sensor failure.
• Check the main control board. In rare cases, incorrect readings persist because the board itself is failing to interpret signals properly.
• Verify proper airflow inside the unit—blocked vents and heavy frost can stop air circulation and lead to false symptoms.

Maintenance and care to get the most from your sensor

You won’t need frequent maintenance, but the following steps help ensure long life.

Simple maintenance tips

• Keep the connector dry and corrosion-free; if you see corrosion, clean contact surfaces carefully.
• Avoid pinching the cable; route it where it won’t be pinched by panels or moving parts.
• Ensure the probe is seated in the air stream, not touching a cold surface. That way it measures air, not evaporator or cabinet temperature.
• Check the sensor during routine cleaning or when you’re servicing other parts. A quick visual check once a year helps avoid unexpected failures.

Comparison: DL-pro vs OEM vs other aftermarket options

When you’re deciding whether to buy this DL-pro sensor, you should understand the trade-offs.

DL-pro (aftermarket) advantages

• Lower cost compared to many OEM parts.
• Good compatibility across multiple brands and part numbers.
• Often available quickly without waiting for OEM backorders.

OEM advantages

• Exact factory calibration and guaranteed fit.
• Potential warranty coverage if installed by an authorized technician.
• Generally consistent quality and specification.

Other aftermarket options

• Some aftermarket suppliers offer universal sensors that require splicing or adapter harnesses; DL-pro’s plug-mounted design is simpler for many owners.
• Quality varies between aftermarket brands; read reviews and seller return policies to reduce risk.

If you want exact OEM performance for mission-critical use, OEM might be preferable. If you’re comfortable with an aftermarket part that’s inexpensive and likely to restore normal operation, DL-pro is a practical choice.

Price, warranty, and return considerations

Before you order, check seller policies.

Price considerations

You’ll typically find aftermarket sensors are significantly cheaper than OEM replacements. Buying a quality aftermarket part gives you cost savings while still resolving the issue in most cases.

Warranty and returns

• DL-pro and sellers often offer limited return windows—read the listing carefully.
• If the seller indicates they’ll help match your device, use that service to confirm fit before ordering.
• Keep packaging and your old part until you’re sure the new sensor works; this simplifies returns.

Buying tips and checklist

Use this checklist before purchasing to avoid fit and function problems.

• Confirm the part number on your old sensor (look for DA32-10105H, DA3210105H, or model numbers listed).
• Compare the shape of the plug and physical dimensions (21 x 9 x 26 mm for the plug, probe 7 x 25 mm).
• Measure the cable length and total needed reach—160 mm total length is specified.
• Ask the seller if you’re uncertain; provide clear photos of the old connector and mounting area.
• Verify the return policy in case it doesn’t fit.
• Keep a multimeter handy for post-install testing.

Common questions answered (FAQ)

These are questions buyers frequently ask about sensors like this one.

Q: Will this sensor work with my Samsung fridge?
A: If your fridge uses part number DA32-10105H (DA3210105H), the DL-pro sensor is listed as compatible. Always compare the connector and dimensions with your old sensor before buying.

Q: Can you install this yourself?
A: Yes. If you’re comfortable unplugging the fridge, removing a few trim panels, and unplugging a connector, you can usually install this sensor yourself. Follow safety advice and power down the fridge before starting.

Q: How long will an aftermarket sensor last?
A: With normal use and proper routing, you can expect several years of service. Lifespan depends on environmental conditions, humidity, and mechanical stress on the cable.

Q: Does it come calibrated?
A: Thermistor sensors are stable by design, but aftermarket parts may not be factory-matched exactly to OEM tolerances. In practice, most control boards accept typical variations without issue.

Q: What if it doesn’t fix my problem?
A: If replacing the sensor doesn’t restore normal operation, inspect fan motors, defrost heater, evaporator coils, and the main control board. You might need additional diagnostics or professional help.

Troubleshooting tips if the new sensor doesn’t solve the issue

If you install the new DL-pro sensor and problems persist, follow these steps:

1. Confirm proper seating: make sure the probe is in the air duct, not touching a metal surface.
2. Re-check wiring: ensure the plug is fully seated and there are no bent pins.
3. Test the sensor in situ with a multimeter—verify it shows expected resistance behavior with temperature.
4. Inspect evaporator and fan: if the evaporator is iced over or fan isn’t working, replacement of the sensor won’t fix airflow problems.
5. Check defrost system: a failed defrost heater or defrost thermostat can cause frost build-up that the sensor will misinterpret as low temperature.
6. If uncertain, take photos and contact the seller or a repair technician.

Final verdict and who this product is right for

If you need an affordable, physical drop-in replacement for a temperature sensor that controls refrigeration cycles, the DL-pro Temperature Sensor for Samsung DA32-10105H is a solid aftermarket option. You’ll appreciate the compact probe, standard plug size, and broad compatibility with Samsung and other brands. For DIYers and technicians who want to fix a fridge that’s not cooling properly or is cycling abnormally, this sensor is a practical, low-cost step before moving to more invasive repairs.

You should purchase this if:

• Your old sensor is visibly damaged or shows open/infinite resistance.
• You’ve confirmed the plug and probe dimensions match your fridge.
• You’re comfortable doing a straightforward replacement or have a local technician who can install it.

Consider OEM or professional support if:

• Your fridge is under warranty and you prefer not to void coverage.
• Your model requires precise sensor calibration that you want to guarantee with OEM parts.
• You suspect the problem extends beyond the sensor, such as control board or compressor issues.

If you follow the compatibility checks, installation steps, and testing guidance above, you’ll have a good chance of restoring your refrigerator’s temperature control quickly and without high repair costs.
